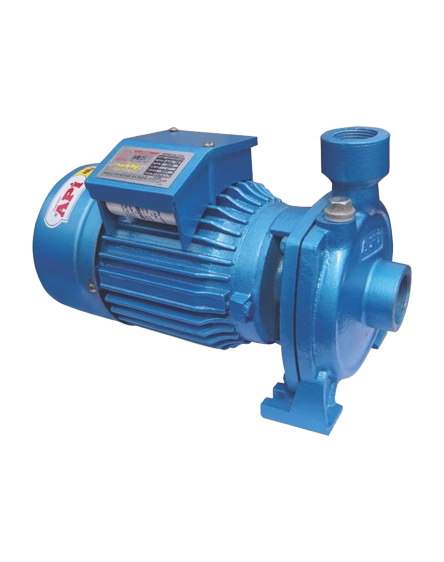

Monoblock Pumps A11 M1/2
Model Number: A11 M1/2
Pump Code: M1/2
Pump Name: Mono Block Pump
Power: 0.5 HP – 0.37 Kw
Power Consumption:3.0 A
Voltage: 220V-240V/50Hz
Applications:
- These pumps are mainly used for agriculture, industrial, civil due to their consistency and strength.
- For Domestic Use water Storage
- For Garden and Irrigation
Product Description
Deep well pump
Domestic type water pump
Motor
99.9 % Copper Winding
Two-pole induction motor(n=2850r. P. M)
Motor Shaft: CS45
Bearing: 6202/6203
Stator Material: Q195
Capacitor:
Material
Pump body: Cast iron
Motor support: Cast iron
Motor housing: Cast iron
Impeller: SS 304
Capacitor Box: POM
Number of Impellers: 2
Shaft with rotor: 45# Steel, AISI 416 stainless steel
Mechanical seal: Carbon/Ceramic
Single phase 220V-240V/50H
Packing: Box packing with beautiful design
| Power | Delivery | Max Head | MAX.HEAD | inlet | outlet | Max Suction | Max Suction | weight | PACKING DIMENSION | Amp | Pressure | |
| (Kw) | (Hp) | (L/min) | (m) | ft | inches | inches | (m) | Ft | kg | mm | A | PSI |
| 0.37 | 0.5 | 100 | 18 | 60 | 1-1/4″ | 1″ | 6.5 | 22 | 32 | 250*160*230 | 3 | 40 |
The centrifugal monoblock pumps are mainly recommended for freshwater as well as fluids which are not chemically violent toward the components of the pump.
