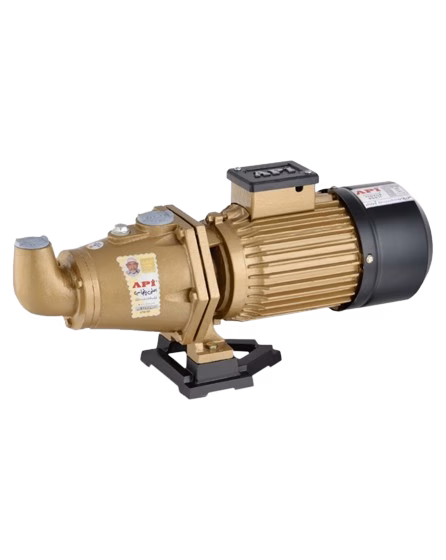

Screw Pump A34 WP 3/4 DC
Model Number: A34 WP 3/4 DC
Pump Code: WP 3/4 DC
Pump Name: Screw Pump
Power: 0.75HP, 0.37KW
Power Consumption: 12v
Voltage: 220V-240V/50Hz
Applications:
- For Water Supply from wells and reservoirs
- For Domestic Use water Storage
- For Garden and Irrigation
Product Description
Deep well pump
Domestic type water pump
Motor
99.9 % Copper Winding
Two-pole induction motor(n=2850r. P. M)
Motor Shaft: CS45
Bearing: 6203/6204
Stator Material: Q195
Capacitor:
Material
Pump body: Cast iron
Motor support: Cast iron
Motor housing: Cast iron
Impeller: SS 304
Capacitor Box: POM
Number of Impellers: 2
Shaft with rotor: 45# Steel, AISI 416 stainless steel
Mechanical seal: Carbon/Ceramic
Single phase 220V-240V/50H
Packing: Box packing with beautiful design
| Power | Delivery | Max Head | MAX.HEAD | inlet | outlet | Max Suction | Max Suction | weight | PACKING DIMENSION | Amp | Pressure | |
| (Kw) | (Hp) | (L/min) | (m) | ft | inches | inches | (m) | Ft | kg | mm | A | PSI |
| 0.37 | 0.75 | |||||||||||
