Product Description

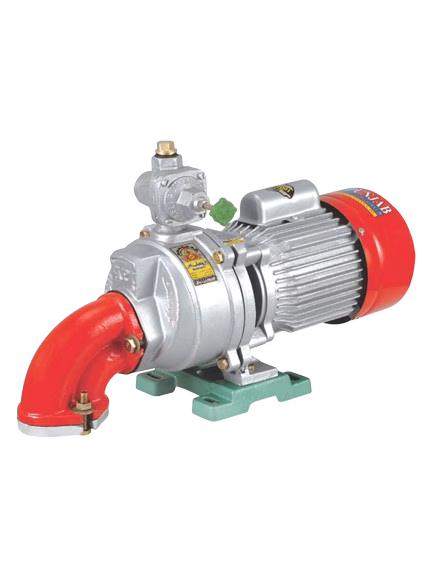

Deep well pump
Domestic type water pump
Motor
99.9 % Copper Winding
Two-pole induction motor(n=2850r. P. M)
Motor Shaft: CS45
Bearing: 6203/6204
Stator Material: Q195
Capacitor:
Material
Pump body: Cast iron
Motor support: Cast iron
Motor housing: Cast iron
Impeller: SS 304
Capacitor Box:
Number of Impellers: 1
Shaft with rotor: 45# Steel, AISI 416 stainless steel
Mechanical seal: Carbon/Ceramic
Single phase 220V-240V/50H
Packing: Box packing with beautiful design
| Power | Delivery | Max Head | MAX.HEAD | inlet | outlet | Max Suction | Max Suction | weight | PACKING DIMENSION | Amp | Pressure | |
| (Kw) | (Hp) | (L/min) | (m) | ft | inches | inches | (m) | Ft | mm | A | PSI | |
| 0.55 | 0.75 | 50 | 25 | 80 | 1-1/4″ | 3/4″ | 25 | 80 | 23 | 250*160*230 | 4 | 60 |
