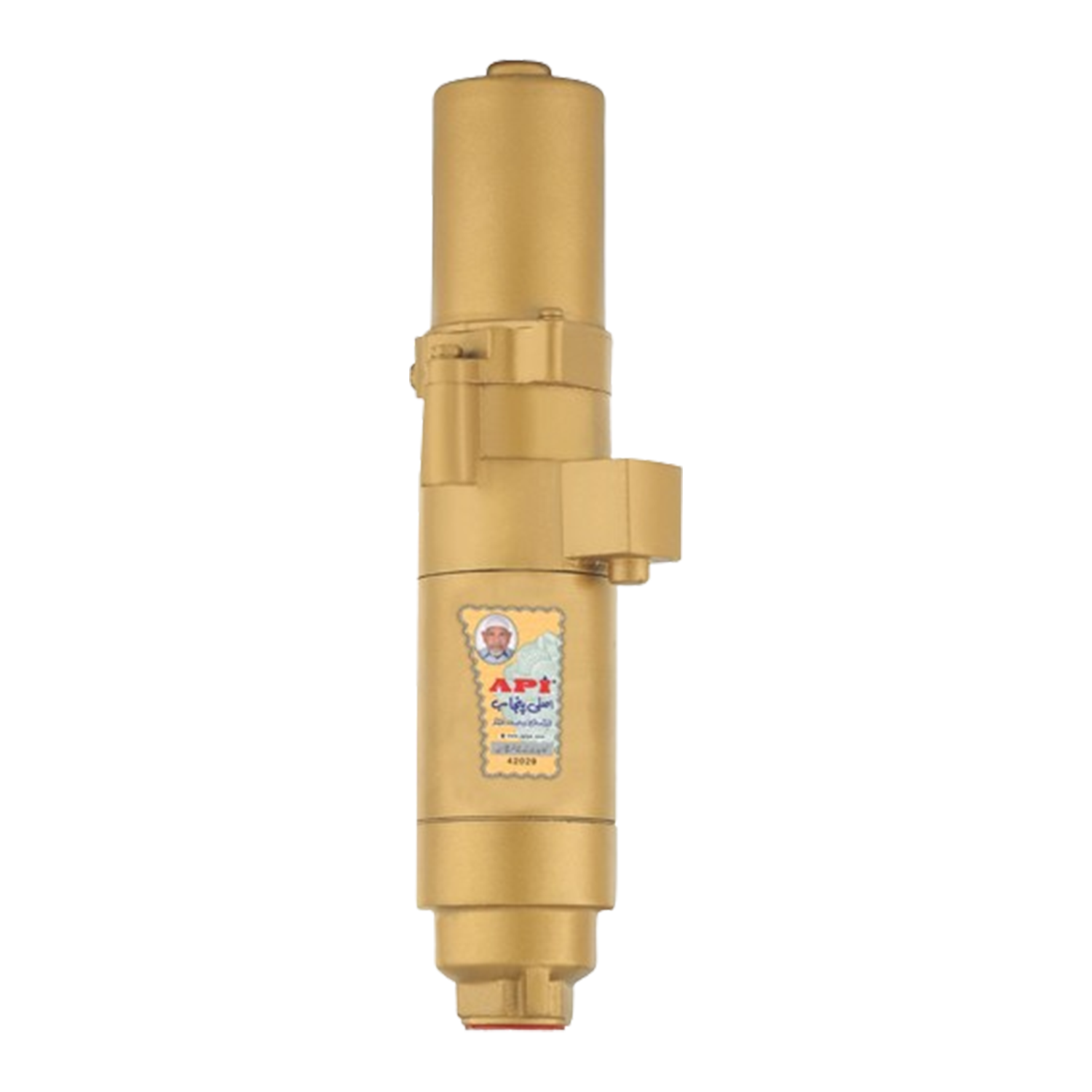

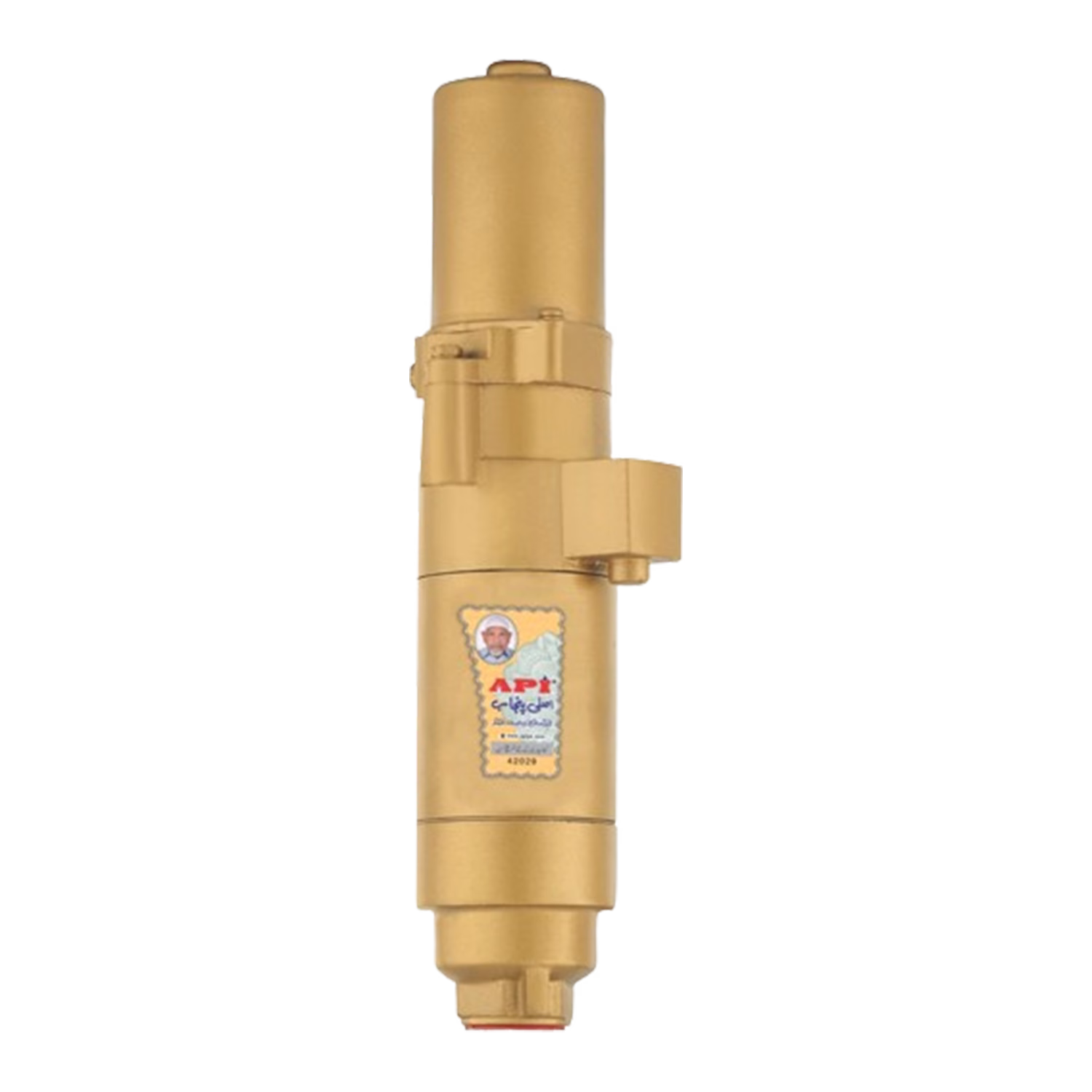

Submersible Deep Well Pump APM 3/11

Model Number: APM 3/11
Pump Code: 3/11
Pump Name: Submersible Deep Well Pump
Power: 1.5HP, 1.1KW
Power Consumption: 3.0A
Voltage: 220V-240V/50Hz

Body Diameter: 3″
Pump Length: 1000mm
Wire Length: 2m

Water Delivery: 1.25″
Flow Capacity: 1000L/h
Max Head: 100
Max Flow Rate: 3m3/h

Material

Pump Casing Material: SS304
Inlet: Cast iron
Outlet: Brass
Oil Chamber: Cast Iron
Impeller: POM/PC
Motor Winding: Copper 100%
Stator Material:
Rotor Material:
Capacitor:
Mechanical Seal:
Bearing: C&U
