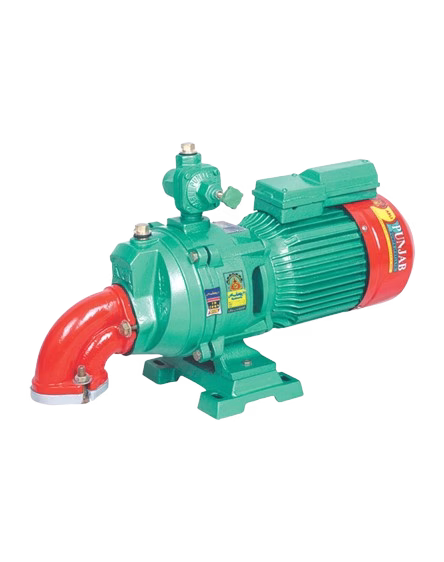

Deep Well Heavy Duty

Model Number: A9 DD
Pump Code: DD
Pump Name: Deep Well Heavy Duty
Power: 2 HP – 1.5 Kw
Power Consumption:11.0 A
Voltage: 220V-240V/50Hz

Applications:

For Water Supply from wells and reservoirs
For Domestic Use water Storage
For Garden and Irrigation

Product Description

Deep well pump
Domestic type water pump
Motor
99.9 % Copper Winding
Two-pole induction motor(n=2850r. P. M)

Motor Shaft: CS45
Bearing: 6203/6204
Stator Material: Q195
Capacitor:

Material

Pump body: Cast iron
Motor support: Cast iron
Motor housing: Cast iron
Impeller: SS 304
Capacitor Box: POM

Number of Impellers: 2

Shaft with rotor: 45# Steel, AISI 416 stainless steel
Mechanical seal: Carbon/Ceramic
Single phase 220V-240V/50H
Packing: Box packing with beautiful design

Power

Delivery

Max Head

MAX.HEAD

inlet

outlet

Max Suction

weight

PACKING DIMENSION

Amp

Pressure

(Kw)
